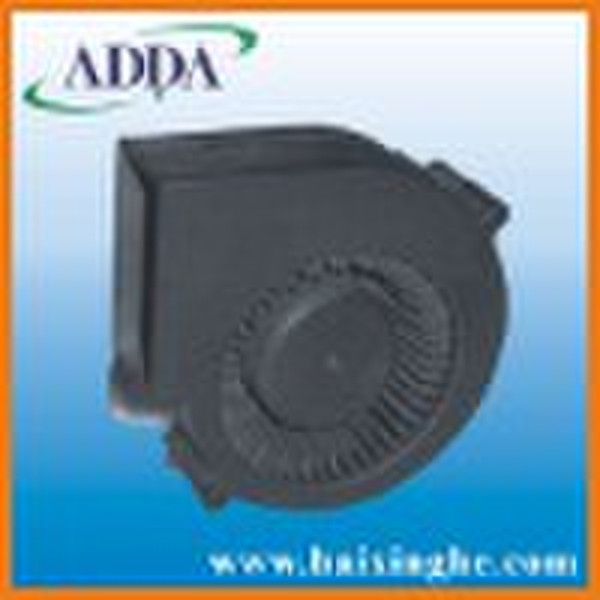

ADDA AB9433 centrifugal fan
Fenny Lau
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | ADDA |
| Model Number | AB9433 centrifugal fan |
ADDA AB9433centrifugal fanGeneral Specification Electric Strength: 5mA msx at 1500VAC for 1 min between lead wire and frame Insulation Resistance: 10M ohm between lead wire and frame(DC 500V) Life Expectancy(Ball bearing): 50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% Life Expectancy(Hypro bearing): >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% Life Expectancy(Fluid Dynamic bearing): >60000hrs min at 40 degree C/L10 relative humidity 65%+/-20% Operation Temperature: -10 75 degree C(+14 167 degree F),normal; -10 90 degree C(+14 194 degree F), specification Storage Temperature: -40 75 degree C(-40 167 degree F) Protection: Motor protection and polarity protection Lead wire: UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 Plastic Material: Black PBT (UL94V-0) glass fiber ADDA AB9433centrifugal fandetailed specification: 1. frame size(mm): 94X94X332. bearing system type:ball bearing3. rated voltage:12V4. rated speed: 4000RPM5. maxiam air flow: 33.1CFM6. maxiam pressure: 29.21mmAq7. maxiam noise: 54.2dBA8. functions:by IC9. safety approvals: CE,TUV, UL,cUL
Delivery terms and packaging
Packaging Detail: 40pcs/carton,no wooden package Delivery Detail: 4 5 weeks after check your order and receive your payment
